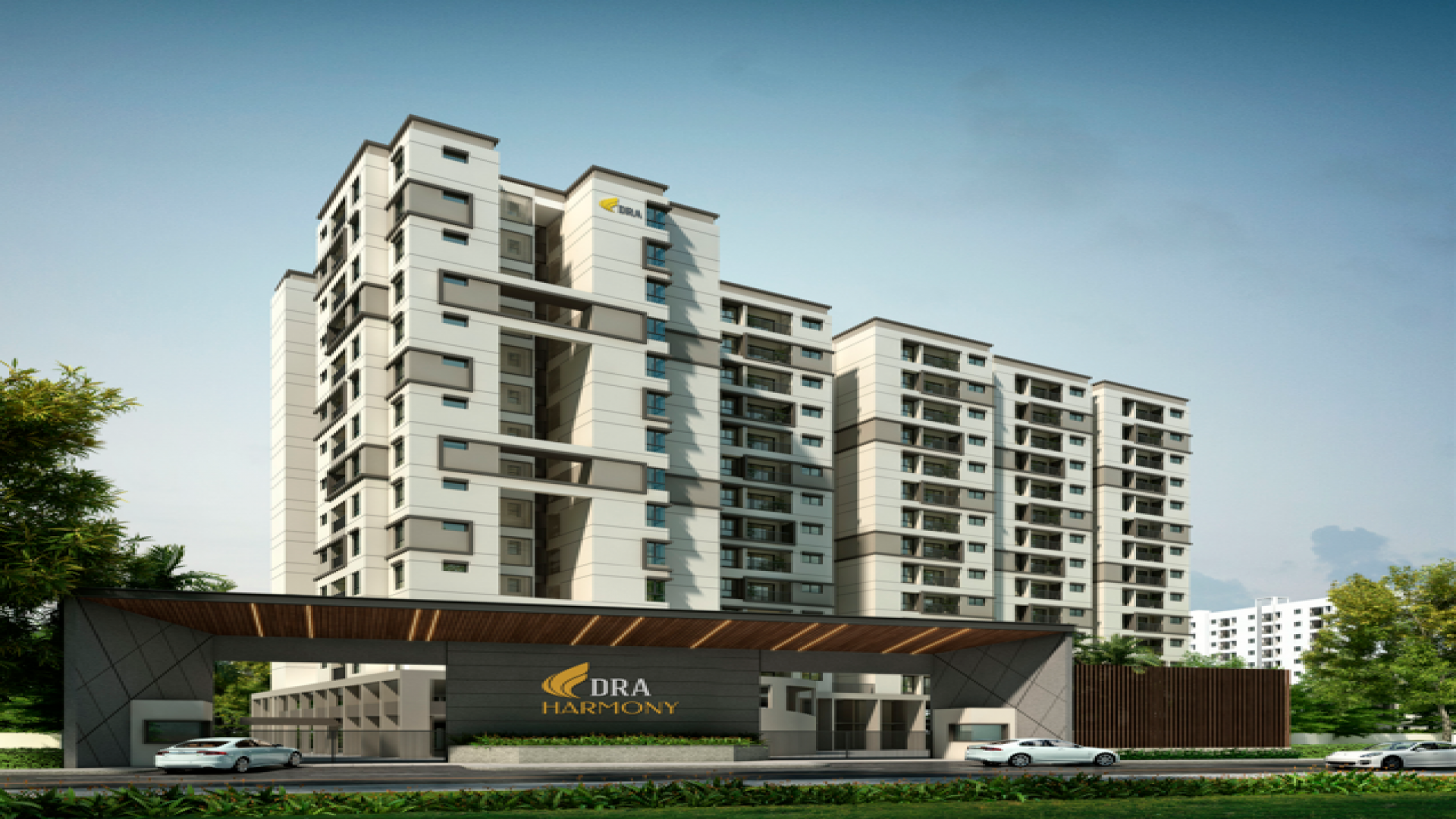

DRA Harmony

STRUCTURE

Structural System : RCC framed structure designed for seismic compliance (Zone-III).

Masonry : AAC block masonry wall.

Pest Control : Anti-termite treatments wherever applicable during the construction stage.

FLOOR FINISH WITH SKIRTING

Living, dining : 800mm x 800mm vitrified tile flooring and skirting.

Bedrooms& kitchen : 600mm x 600mm vitrified tile flooring and skirting.

Bathrooms : 300mm x 300mm anti-skid ceramic tile flooring.

Balcony : 300mm x 300mm anti-skid ceramic tile flooring.

Utility / service area : 300mm x 300mm anti-skid ceramic tile flooring.

WALL FINISHES

Internal walls : Two coats of acrylic emulsion over one coat primer and two coats of wall putty.

Ceiling : Two coats of acrylic emulsion over one coat primer and two coats of wall putty.

Exterior walls : Plaster finish with weather proof texture paint or weather proof emulsion paint as decided by the architect

Bathrooms : 300mm x 450mm Glazed ceramic wall tiles up to 7'-0" height.

Kitchen : Glazed ceramic wall tile 2'-0" above the kitchen counter.

Utility : Glazed ceramic wall tile up to 3'-0".

KITCHEN&UTILITY / SERVICE AREA

Kitchen platform : Platform with granite counter slab 2'-0" wide at height of 800mm from the finished floor level.

Kitchen sink : Stainless steel single bowl sink without drain board and sink faucet of Hindware / Parryware or equivalent

Electrical point : Provision for exhaust & water purifier.

Utility area : Provision for washing machine.

BATHROOMS

Sanitary fixture : Wall mounted European Water Closet (EWC) of Hindware / Parryware or equivalent will be provided with concealed cistern.

Cp fitting : Health faucet, pillar cock, wall mixer, overhead shower Hindware / Parryware or equivalent.

Drain : SS square designed gratings will be provided.

False ceiling : Grid type false ceiling will be provided above 7'-0" height(easy maintenance of plumbing lines & geysers

JOINERY

Main doors : Pre-engineered veneer finish flush door with ironmongery like door lock, tower bolt, door viewer, magnetic catcher in SS finish will be provided.

Bedroom doors : Pre-engineered laminate finish flush door with ironmongery like door lock, tower bolt, magnetic catcher in SS finish will be provided.

Bathroom doors : Pre-engineered laminate finish flush door with ironmongery like thumb turn lock and a latch will be provided.

WINDOWS

Windows : UPVC sliding windows with bug mesh will be provided inside the apartments (except openable windows & bug mesh protects you from the menace of mosquitoes) - (U).

French doors : UPVC frame and sliding door with see through glass.

Ventilators : UPVC frame of fixed or adjustable louvered or openable shutter for ODU access.

MS Grill : MS safety grills will be provided all the sliding windows inside the apartment.

HANDRAIL

Balcony handrails : MS handrail will be provided as per architect design

WATERPROOFING

Water proofing : Water proofing will be done the water retain area like lift pit, toilet, balcony & utility / service area, UG sump, STP & OHT

ELECTRICAL

Power Supply : 3 Phase connection for each apartment.

Power back-up : 350 watts for 2BHK, 500 watts for 2.5BHK & 3BHK through Automatic Changeover Current & Limiter (ACCL). (Instead of pre-designed use of electrical light points during power cut flexibility to use the lighting circuit of choice within the allotted power capacity).

Safety device : RCCB safety device will be provided for each apartment (protection against voltage fluctuations, earth fault as well as any leakage current).

Switches & sockets : Modular Switches and sockets will be of Anchor Roma / L & T or equivalent.

Wires : Fire Retardant Low Smoke (FRLS) copper wire of a quality ISI brand.

TV : Provision for TV in living and master bedroom with pre-wired co-axial cable for DTH easy connectivity.

Data : Provision for fibre optical cabling in living.

Air-conditioner : Split air-conditioner provision will be provided living/dining and all the bedrooms. Pre - installed conduit provided as provision for A/C (Easy for fixing your air-conditioner without calling technicians to drill the walls).

Exhaust fan : Exhaust fan provision for all the toilet.

Geyser : Geyser provision for all the toilets.

PLUMBING

Water supply : Hydro pneumatic Pressure System (Provides water at constant pressure in all apartment irrespective of the floor vis-à-vis traditional overhead tank) - (U).

Internal : All internal plumbing line are CPVC.

External : All external plumbing lines are UPVC / PVC pipes.

Drainage : All drainage plumbing lines are PVC pipes.
